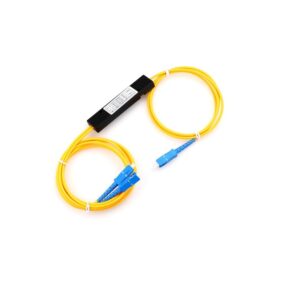

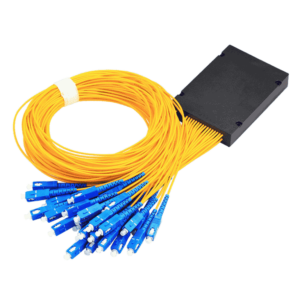

ABS Module PLC SPLITTERS

ABS Module Planar Light wave Circuit (PLC) Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size with high reliability wide operating range and good channel to channel uniformity and is widely used in PON networks to realize optical power splitting A whole series of N * X Splitter products that are tailor made to specific applications. The splitters meet Telcordia 1209 and 1221 requirements.

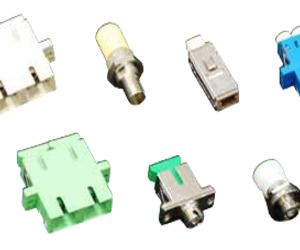

Adapters

Telcordia, TIA/EIA and JIS compliance Available as FC , SC , ST , LC , MTRJ , E2000 Choice of Simplex , Duplex and Hybrid version
High precision Zirconia or standard Phosphor bronze Sleeves alignment
Choice of Metal or Plastic Housing Low insertion loss
High repeatability and stability with easy installation

ADSS

All direct self supporting (ADSS ) Cable an advanced loose tube optical cable with SZ stranded core and fiber with outstanding optical and geometrical properties. Cables are fully water-blocked.

Primary use is for self-supporting aerial appliations for span lengths 80 meters depending on local loading conditions. OFO can design ADSS for bcth low voltage distribution systems and high voltage power transmission systems. The cable can also be pulled through ducts, direct buried in some types of soil, lashed to a messenger or placed in outdoor cable trays.

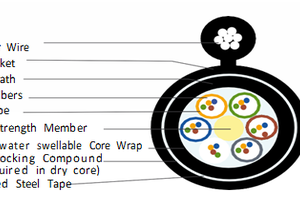

Aerial Drop Wire figur-8 Flat Type

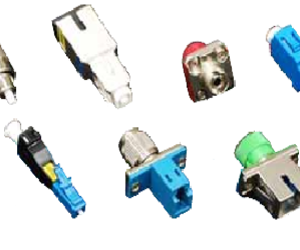

Attenuatores

Adopting advanced attenuation fixed technology , plug in fixed value attenuators features high power endurance and low back reflection , suitable for high speed digital transmission and analog application . It is available in Single mode and Multimode .

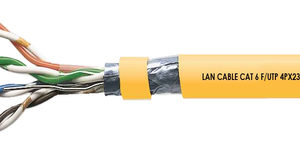

CAT6 FUTP

CAT6 F/UTP cables reduce crosstalk and system noise. The superior insulation around the 23 AWG copper wires attribute to the increased performance, These cables are used in the tertiary, but also in the secondary level of a network. They are characterized by large performance reserves and outstanding performance.
They can be used to implement services such as Gigabit Ethernet. They can transmit data at 1000 Mbps (=1 Gigabit per second) with a frequency of 250 MHz and suitable for 1OBASE-T, 1OOBASE-TX Fast Ethernet and 1000BASE-T/1000BASE-TX (Gigabit Ethernet). Enhanced performance cable for transmission of high speed data, digital and analogue voice and video (RGB) signals on LANs. Supports Gigabit Ethernet (1000 base-T) standard. Operates at bandwidth of 250 MHz, The mechanical characteristics are perfectly suited for the application in tight cable channels and platforms due to their optimized construction.

CAT6 SFTP

CAT6 SFTP Cable with aluminum polyester foil plus tinned copper braid overall screening gives protection against dyENI and avoid signal loss and high ACR values – providing low BER (Bit-Erase-rater). The superior insulation around the 23 AWG copper wires attribute to the increased performance, These cables are used in the tertiary, but also in the secondary level of a network. They are characterized by large performance reserves and outstanding performance. They can be used to implement services such as Gigabit Ethernet. .They can transmit data at 1000 Mbps (=1 Gigabit per second) with a frequency of 250 MHz and suitable for 10BASE-T, 10OBASE TX Fast Ethernet and 1000BASE-T/10O0BASE-TX (Gigabit Ethernet). Enhanced performance cable for transmission of high speed data, digital and analogue voice and video (RGB) signals on LANs. Supports Gigabit Ethernet (1000 base-T) standard. Operates at bandwidth of 250 MHz, The mechanical characteristics are perfectly suited for the application in tight cable channels and platforms due to their optimized construction.

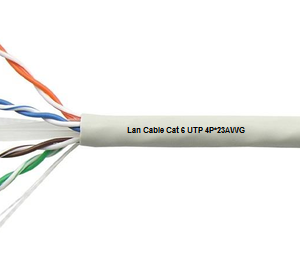

CAT6 UTP 23AWG

As streaming video and multimedia over LAN are gaining popularity, users demand faster data transmission and reduced waiting time. The superior insulation around the 23 AWG copper wires attribute to the increased performance, These cables are used in the tertiary, but also in the secondary level of a network. They are characterized by large performance reserves and outstanding performance. They can be used to implement services such as Gigabit Ethernet. They can transmit data at 1000 Mbps (-1 Gigabit per second) with a frequency of 250 MHz and suitable for 10B ASET, 100BASE-TX Fast Ethernet and 1O00BAS5T/1O00BASETX (Gigabit Ethernet). Enhanced performance cable for transmission of high speed data, digital and analogue voice and video (RGB) signals on LANs. Supports Gigabit Ethernet (1000 base-T) standard. Operates at bandwidth of 250 MHz, The mechanical characteristics are perfectly suited for the application in tight cable channels and platforms due to their optimized construction.

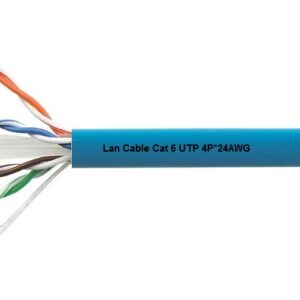

CAT6 UTP 24AWG

As streaming video and multimedia over LAN are gaining popularity, users demand faster data transmission and reduced waiting time. The superior insulation around the 24 AWG copper wires attribute to the increased performance, These cables are used in the tertiary, but also in the secondary level of a network. They are characterized by large performance reserves and outstanding performance. They can be used to implement services such as Gigabit Ethernet. They can transmit data at 1000 Mbps (-1 Gigabit per second) with a frequency of 250 MHz and suitable for 1OBASE-T, 100BASETX Fast Ethernet and 1000BASET/1000BASETX (Gigabit Ethernet). Enhanced performance cable for transmission of high speed data, digital and analogue voice and video (RGB) signals on LANs. Supports Gigabit Ethernet (1000 base T) standard. Operates at bandwidth of 250vlHz, The mechanical characteristics are perfectly suited for the application in tight cable channels and platforms due to their optimized construction.

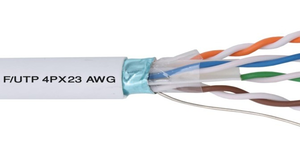

CAT6A FUTP

6A F/UTP cable supports channel performance exceeding ANSI/TIA-568-C.2 and ISO/IEC 11801 Class E A requirements. When combined with our screened Category 6A series connectivity, the result is a channel capable of supporting 10GBASE-T operation over 100-metre, 4-connector topologies. In addition the screened construction ensures virtually zero alien crosstalk. The Category 6A F/UTP cabling system supports emerging and converging IP applications like Voice Over IP (VoIP), IP video and future 10 gigabit applications.

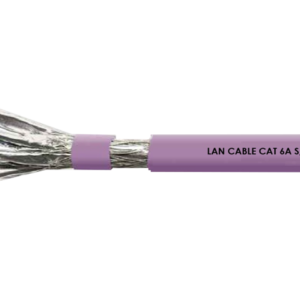

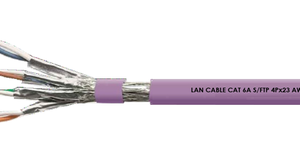

CAT6A SFTP

CAT6A S/FTP Cable with aluminum polyester foil per each pair, copper braid overall screening gives protection against dynamic noise between individual signals, ENI and avoid signal loss and high ACR values – providing low BER (Bit-Erase-rater).CAT6A cable System complies with all of the performance requirements for current and proposed applications, the superior insulation around the 23 AWG copper wires attribute to the increased performance, these cables are used in the tertiary, but also in the secondary level of a network. They are characterized by large performance reserves and outstanding performance. They can be used to implement services such as 10 Gigabit Ethernet, Gigabit Ethernet with a frequency of TOO MHz and suitable for 10/1OOBASE-T, 1O0OBASE-TX.Enhanced performance cable for transmission of high speed data„ token ring, 155 Mbps ATN, 100 Mbps TPPND, ISDN, analog and digital video and analog and digital voice (VoIP). Operates at bandwidth of 500 MHz, The mechanical characteristics are perfectly suited for the application in tight cable channels and platforms due to their optimized construction.

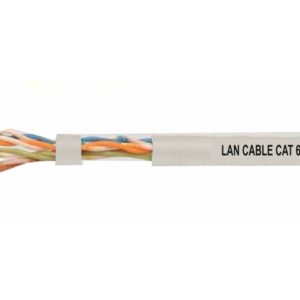

CAT6A UTP

CAT 6A cable System complies with all of the performance requirements for current and proposed applications, the superior insulation around the 23 AWG copper wires attribute to the increased performance, these cables are used n the tertiary, but also in the secondary level of a network. They are characterized by large performance reserves and outstanding performance. They can be used to implement services such as 10 Gigabit Ethernet, Gigabit Ethernet with a frequency of 500 MHz and suitable for 10/100BASE-T, 10OOBASETX.Enhanced performance cable for transmission of high speed data, , token ring, 155 Mbps ATM, 100 Mbps TPPMD, ISDN, analog and digital video and analog and digital voice (VoIP).Operates at bandwidth of 500 MHz, The mechanical characteristics are perfectly suited for the application in tight cable channels and platforms due to their optimized construction.

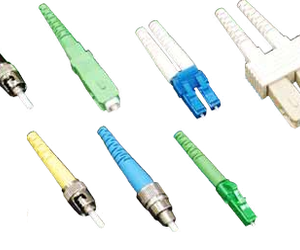

Connectors

The Fiber optic connectors are mainly used in the telecommunications market due to precision interconnect and secure connection . These connector can be seen in every area of the communication environment .
The connectors are supplied with the best quality components complying to standards like EIA-TIA-568 Termination procedure follows with Cable end preparation followed with epoxy – curing and polishing . Connectors are available with 2 mm / 3 mm cable and 900 Micron buffered fiber

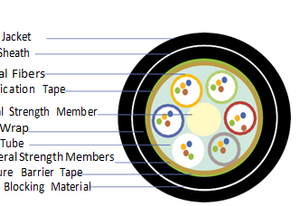

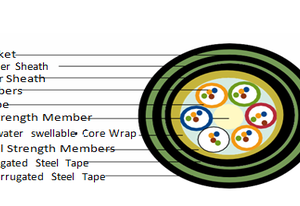

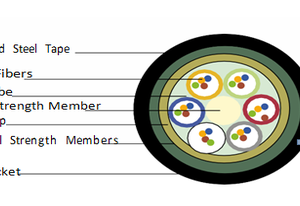

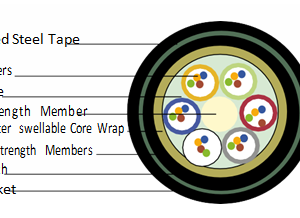

Direct buried metallic

The Cable can be based on Multimode OM1,OM2 OM3 or Single Mode Fiber as per ITU-T G.652.D, G657, G655, or Combination specifications (Hybrid Cable).
Fiber Reinforced Plastic is used as Central Strength Member. Polybutylene Terephthalate (PBT).

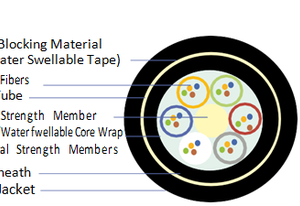

Direct Buried non metallic

Drop cable

Optical Fiber – SM-ITU-T G 657-A Tight Buffer Diameter – 0.9 mm Aramid Yarns – As strength Member
Outer Jacket – Low smoke Zero Halogen LSZH – UV Resistant Jacket Color choice available – (ATC Standard – yellow) Outer Diameter: 4.5 mm (1F) 7mm (2F/4F) .
Used as Indoor/outdoor application. Drop in the room especially for FTT-x Applications

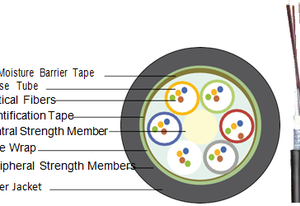

Duct metallic

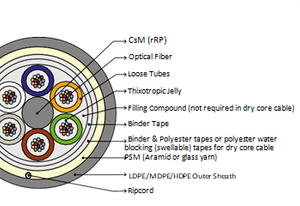

Duct mini non metallic

Duct non metallic

Electrical Distribution Box

Elextrical Box 7×7

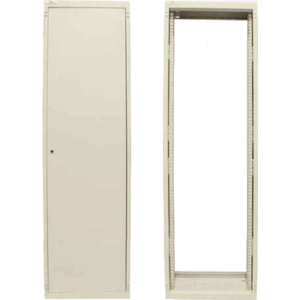

ETSI Racks

Flexible Design with precise dimension for all Telecommunication
applications.
Meeting requirements of under-Base Cable entry ventilation and frame and 1.2 mm for others
prevention.
Can be equipped with Mounting Angles in both Designs 19″ and Metric Holes Standards.
Mounting Angles are Full Height and can be adjusted in the Depth.
If required , additionalMounting Angles can be also added at the rear.
ETSI Rack is offered with Standard Dimensions of the Rack : 600 Width x 300 Depth .
Easy removable Side Doors for better Cable accessibility. Side Doors equipped with Dual Locks.

Faceplate

86 X 86mm to be loaded with keystone Jacks.
Elegant Design.
Translucide window and large labeling for better visibility.
Provided with screw.

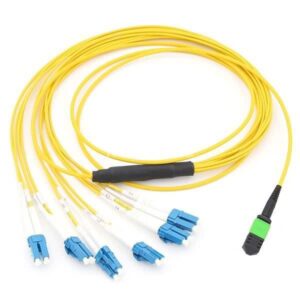

Fanout cable

This cable has several tight buffered fibers ( 0.9 mm Diameter ) bundled under the same Jacket with aramid strength members for giving the tensile strength to the cable and prevent kinking .The cables are small in size and are used for dry conduit runs .

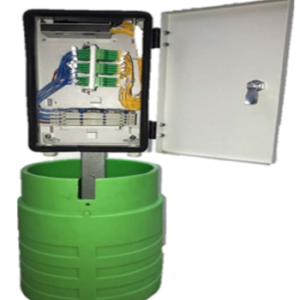

FDTP Pedestal type

The Fiber Distribution Point provides everything necessary to manage distribution fibers for an outside plant FTTx application on the street.
The Fiber Distribution Terminal Pedestal accommodates two 2:32 fiber optic splitter inside of the metallic box . It protects the splicing point from outside
environment.
The design and layout of the cable guides
promote an efficient and ordered positioning of the cable with main body. Placement of the
incoming cables allows convenient access for installation, maintenance and subsequent termination of additional secondary cable.
All components of the Distribution Point will be of high quality design, workmanship and finish.

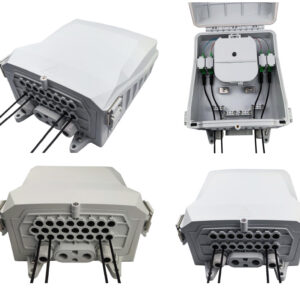

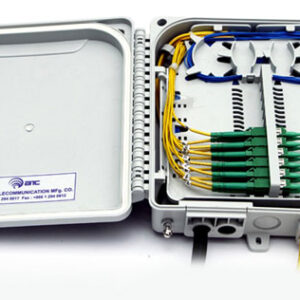

Fiber Distribution Box 16M/24M

FSP-P-16M/24MFiber Distribution Box is used as a terminal point for the feeder cable to
connect with the drop cable in a telecommunication network system. The fiber splicing, splitting,
and distribution can be done in this box, and meanwhile, it provides protection and management for the
FTTx network building. Especially the bottom plate is changeable.

Fiber distribution hub

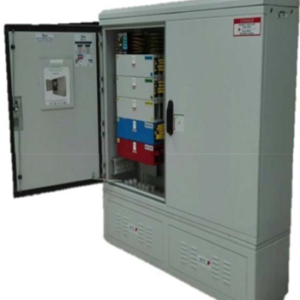

Fiber distribution terminal

The outdoor Patching on Demand Fiber Distribution Terminal (POD-FDT) cabinet for up to 768 end users is designed to handle fiber optic terminations and passive optical splitters in PON FTTx networks. It can also be used for Point to Point (P2P) applications or combinations of the both. The POD-FDT is used as a demarcation point between the feeder network and the distribution network and provides quick and easy incremental installation of distribution cable terminations and fiber optic splitters. This cabinet can handle both air-blown fiber in micro ducts, micro cables as well as drop cables and other fiber optic cables.

The POD-FDT is intended for outdoor
installations but can also be mounted indoors,
floor standing or wall mounted e.g. for use in a basement of
a Multi Dwelling Unit.

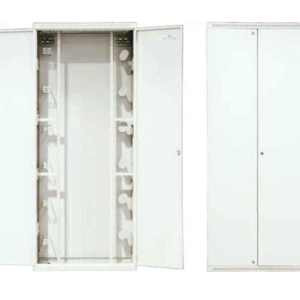

Fiber Management Cabinet (FMG)

Flexible Design with precise dimension for all Telecommunication applications.
Superior solution for Fiber Cables Management.
Extremely high packaging density & efficient cable management. Fiber management is provided on both sides of the Mounting Angles. Wide Range of Splice, Patch & Cable Storage Options.
Meeting requirements of under-Base Cable entry ventilation and prevention.
Loading Capacity:
Static Loading: 500 Kg
Material:
Cold Rolled Steel 2.0 mm for main frame and 1.2 mm for others
Can be equipped with Mounting Angles in both Designs 19″ and Metric , ,
Surface Finish:
Holes Standards.
Mounting Angles are Full Height and can be adjusted in position to accommodate 19″ instruments or 21″ instruments.
FMG Rack is offered with Standard Dimensions of the Rack : 900 Width x 300 Depth .
Easy removable Side Doors for better Cable accessibility. Side Doors equipped with Dual Locks.

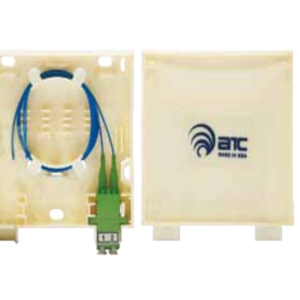

Fiber Outlet

MIRA-FOB is offered as Fiber Outlet Box .The Innovative Design of it allows easy removal of its cover to access fiber connections without disturbing the fiber connections .
MIRA-FOB is the solution for bringing fiber to in-building premises for FTTx and other types of Fiber network ONU/ONT

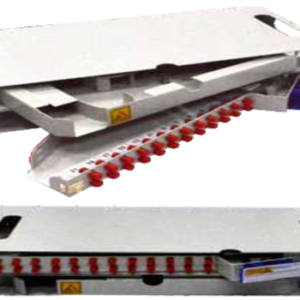

Fiber Patch Panel

MIRA -FTMP is offered as Optical Distribution Fiber Termination and Management Panel which is high quality mountable on 19 “standard frame for Termination/Management of fibers in optical fiber networks . It consists of 2 panels . (a) ODF Fiber Termination (b ) ODF Fiber Management .
MIRA- FTMP enclosures are applicable to be installed as Indoor /in- building premises ETSI racks with 19 “standard mounting angles and they facilitates combination of three functions “Optical Termination , management and distribution ” .

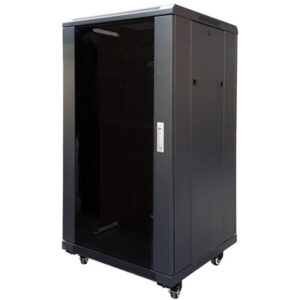

Free Stand Cabinets (CABFS)

Produced in sizes 21”48U Width 600 or 800 mm
Depth 600, 800, 1000mm
Frame construction; 1.5 mm, 2 mm sheet steel
Color powder coated RAL (standard RAL 7035, 9005)
Door with swivel handle lock (single or mullpoint); other locks on request
Doors: perforated steel, vertically double doors.
Rear panel with bottom perforation as standard; optionally can be replaced by full range of doors.
Reversible door – easy re-hanging to open on right or left (at installation site)
Door opening angle 180°
Removable side panels with lock; easy access to installed devices, security, and fast installation and dismantling
Bottom frame with openings for cable entry (220×100 mm)
covered with removable blank panels; racks 800 mm wide have four additional covered cable entry openings (220×100 mm)
Top frame perforated for effective ventilation Ventilation unit can be installed in top frame Four sliding 19″ vertical Mounting angles
Possibility to adapt 800 mm wide racks for installation of 21″ equipment (on request)
Adaptor used for modification of 19″ accessories for 21″ mounting Adjustable feet as standard; castor wheels, lockable castor wheel, plinth, optionally
GND/earthing kit
Load rating max. 400 kg balanced load; 600 kg optionally Standard protection rating IP30; optionally lP41, lP20 when perforated doors use

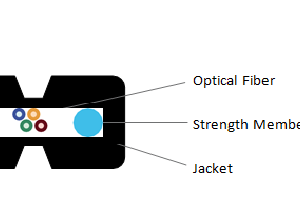

FTTX flat drop

ATC drop flat cable is constructed with Two or Four single mode fiber (ITU-T G.657A) protected by dielectric strength member made of fiberglass reinforced plastic (FRP) and a LSZH outer jacket.

Ideal for use in FTTx applications between the building’s main telecommunications room and the apartment/office consolidation point.

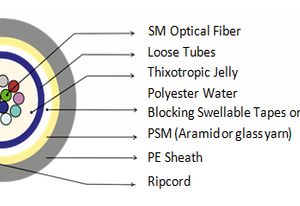

FTTX mono tube

The Cable is based on Multimode OM1,OM2 OM3 or Single Mode Fiber as per ITU-T G.652.D, G657, G655 specifications, (Hybrid Cable)
Polybutylene Terephthalate (PBT)

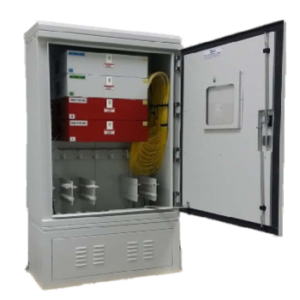

FTTx Network

The outdoor Patching on Demand Fiber Distribution Terminal (POD-FDT) cabinet for up to 288 end users is designed to handle fiber optic terminations. It is also for Point to Point (P2P). The Patching-FDT is used as a demarcation point between the feeder network and the distribution network and provides quick and easy incremental installation of distribution cable. This cabinet can handle both air-blown fiber in micro ducts, micro cables as well as drop cables and other fiber optic cables.
The Patching-FDT is intended for outdoor installations but can also be mounted indoors, floor standing e.g. for use in a basement of a Multi Dwelling Unit.
The outdoor Patching on Demand Fiber Distribution Terminal (POD-FDT) cabinet for up to 288 end users is designed to handle fiber optic terminations. It is also for Point to Point (P2P). The Patching-FDT is used as a demarcation point between the feeder network and the distribution network and provides quick and easy incremental installation of distribution cable. This cabinet can handle both air-blown fiber in micro ducts, micro cables as well as drop cables and other fiber optic cables.
The Patching-FDT is intended for outdoor installations but can also be mounted indoors, floor standing e.g. for use in a basement of a Multi Dwelling Unit.

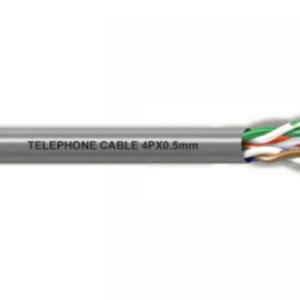

High Quality Cat3 UTP cable

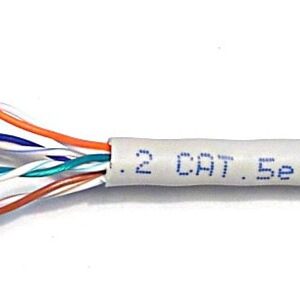

High Quality Cat5e UTP Cable

These cables are used in the tertiary, but also in the secondary level of a network. They are characterized by large Performance reserves and outstanding performance. They can be used to implement services such as Fast Ethernet. These cables are made using 24 gauge (AWG) copper wires with about three twists per inch enabling them to transmit data at 1000 Mbps (-1 Gigabit per second) with a frequency of 100 MHz They are suitable for 10BASE-T, 100BASE-TX . They support a higher signal – to – noise ratio, providing better reliability for current applications and higher data rates for future applications. The mechanical characteristics are perfectly suited for the application in tight cable channels and platforms due to their optimized construction.

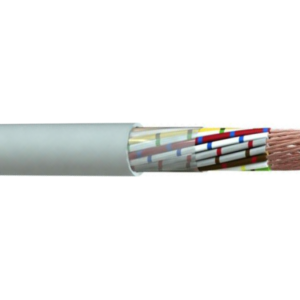

High Quality Signal and Control Cables

The cable consists of stranded multiwire copper conductors with glass-fiber tape and halogen free polymer material. The insulated conductors are twisted to form a pair or conductors form. The cable core consist of pairs or conductors laid up in concentric layers and a plastic tape is wrapped. Then a red LSZH sheath applied on the screened cable core.

Indoor non metallic

The Cable can be based on Multimode OM1,OM2 OM3 or Single Mode Fiber as per ITU-T G.652.D, G657, G655, or Combination specifications (Hybrid Cable).

Fiber Reinforced Plastic is used as Central Strength Member. Polybutylene Terephthalate (PBT).

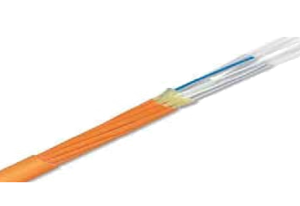

Indoor riser

AMWAJ Telecommunication indoor cables can be deployed indoor as building backbone (riser) cabling as well as for the cabling between floor distributors.
The tight-buffered construction facilitates easier termination for low-fiber-count applications in the local area net- work (LAN) and eliminates need for fan-out kits.
The cables can be installed in conduits and shafts inside buildings

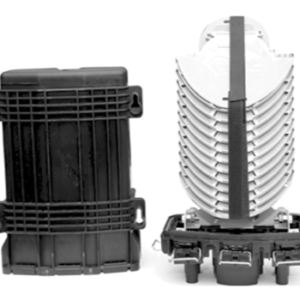

Joint Closure

ATC-JC Series Fiber Joint Closures enables telecom operator & service providers to secure and manage the fiber joints and connections in Outside Plant (OSP) for FTTx networks.
These joint closures are specially designed and fabricated for outdoor operations for both underground and aerial installation provided to bear extreme weather conditions and provide well secured cable jointing mechanism up to environmental rating of IP-68.
ATC-JC Series Joint Closures are designed and equipped for different capacities of Gaskets and splice trays to cover small
and large scale cable entering spilling & jointing for any kind of Telecom networks. ATC-JC Series Closures covers a range from 12 Fiber to 288 fiber Joint closures.

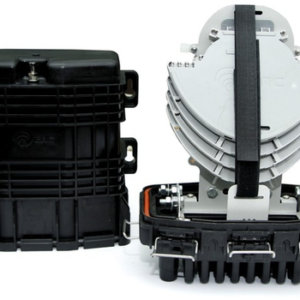

Joint Closure – FAT

Fiber Access Terminal Joint Closure- FATJC enables telecom operator & service providers to secure and manage the fiber joints and connections in Outside Plant (OSP) for FTTH networks.
Fiber Access Terminal is specially designed and fabricated for drop cable distribution among single and multi-dwelling units and can be used both underground and aerial installations. It can bear extreme weather conditions and provide well secured cable jointing mechanism

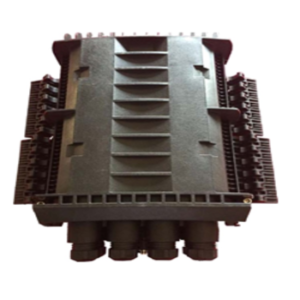

Joint Closure Inline

ATC-JCI Series Fiber Joint Closures enables telecom operator & service providers to secure and manage the fiber joints and connections in Outside Plant (OSP) for FTTx networks.
These joint closures are specially designed and fabricated for outdoor operations for both underground and aerial installation provided to bear extreme weather conditions and provide well secured cable jointing mechanism up to environmental rating of IP-68.
ATC-JCI Series Joint Closures are designed and equipped for different capacities of Gaskets and splice trays to cover small and large scale cable entering spilling & jointing for any kind of Telecom networks. ATC-JCI Series Closures covers a range from 12 Fiber to 288 fiber Joint closures.

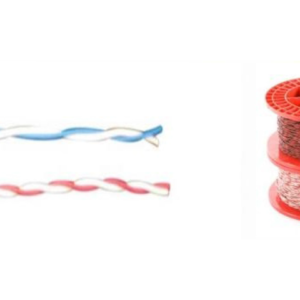

Jumper Wires

The polyethylene insulated wires are used in cross connection cabinets between the primary and secondary terminal blocks
The PVC insulated jumper wires are used in main distribution frames in exchange MDF. Solid annealed plain copper conforming to ASTM B3.
Tinned copper wire conforming to ASTM B 33.

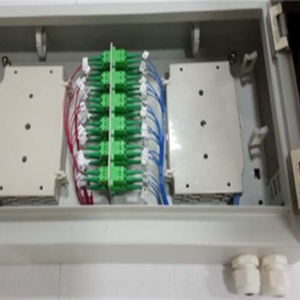

ODB-Junction Box

ODB-Junction Box Series Enclosures have been developed to address the key requirement of fiber splicing & termination from distribution to drop cable in FTTX networks. The high quality enclosure terminates and splices up to 24 fibers. This unique designed ODB-Junction Box Series Enclosures can also be used with splitter 1:8 & 1:16 split ratio. These enclosures protect incoming and outgoing fiber cable and connections through use of specialized splice trays and adaptors. Wall mount type box provides excellent termination requirements.

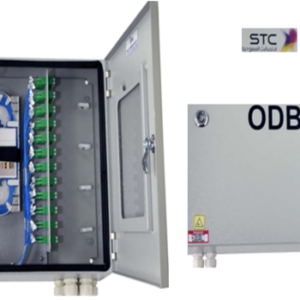

ODB-MB

ODB-MB Series Enclosures have been developed to address the key requirement of fiber termination from distribution to drop cable in FTTX networks. The high quality enclosure terminates and splices up to 96 fibers. ODB-MB Series Enclosures can also be used in metro outside plant (OSP) networks. These enclosures protects fiber cable and connections through use of patented angled adapter and design features that maintain correct bend radii throughout the box. Wall mount type box provides excellent termination requirements.

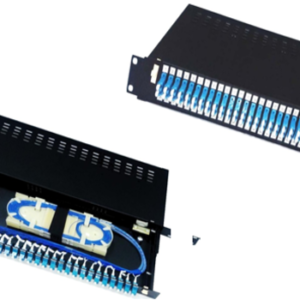

ODF-FSTP FA

ODF-FSTP FA Series Fiber Optic Enclosure are offered as an Optical Distribution Frame (ODF) which are with high quality & mountable on 19″ or 21″Standard frame for termination/Distribution of fibers in optical fiber networks including FTTX networks.
Our FA series ODF-FSTP are Interface point between termination of outside plant (OSP) /Feeder Cables and Fiber optic Transmission Equipment. FA series ODF-FSTP Enclosures are applicable to be installed as Indoor / in building premises (Mounted inside Fiber distribution Frames (FDF) / ETSI Racks or in Racks / cabinets with standard mounting angles) and facilitates combination of three functions Optical Splicing, Management, and Distribution/Termination.

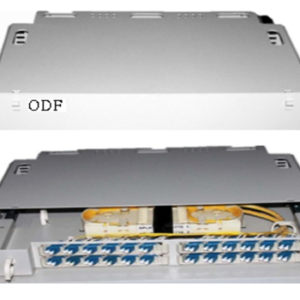

ODF-FSTP FS

ODF-FSTP FS Series Fiber Optic Enclosure are offered as an Optical Distribution Frame (ODF) which are with high quality & mountable on 19″ or 21″Standard frame for termination/Distribution of fibers in optical fiber networks including FTTX networks.
Our FS series ODF-FSTP are Interface point between termination of outside plant (OSP) /Feeder Cables and Fiber optic Transmission Equipment. FS series ODF-FSTP Enclosures are applicable to be installed as Indoor / in building premises (Mounted inside Fiber distribution Frames (FDF) / ETSI Racks or in Racks / cabinets with standard mounting angles) and facilitates combination of three functions Optical Splicing, Management, and Distribution/Termination.

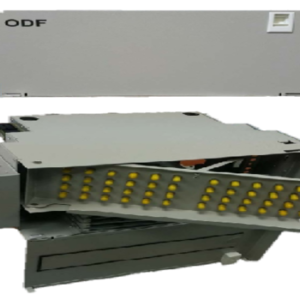

ODF-FSTP WRI

ODF-FSTP Fiber Optic Enclosure is offered as an Optical Distribution Frame (ODF) which has a high quality mountable on 19″ or 21″Standard frame for termination/Distribution of fibers in optical fiber networks including FTTX networks.
ODF-FSTP Enclosures are Interface point between termination of outside plant (OSP) /Feeder Cables and Fiber optic Transmission Equipment. ODF-FSTP Enclosures are applicable to be installed as Indoor / in building premises (Mounted inside Fiber distribution Frames (FDF) / OFMR / ETSI Racks or in Racks / cabinets with standard mounting angles) and facilitates combination of three functions Optical Splicing, Management, and Distribution/Termination.

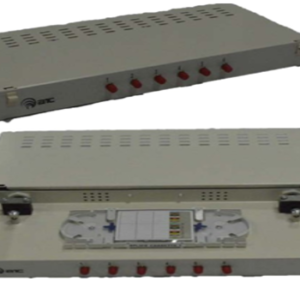

ODF-PP-FTM FA

PP-FTM FA Series Fiber Optic Enclosure are offered patch panel which are with high quality & mountable on 19″ or 21″Standard frame for termination/DistribuGon of fibers in optical fiber networks including FTTX networks.
Our PP-FTM FA Series is Interface point between termination of outside plant (OSP) /Feeder Cables and Fiber optic Transmission Equipment. FA series PP-FTM Enclosures are applicable to be installed as Indoor / in building premises (Mounted inside Fiber distribution Frames (FDF) / ETSI Racks or in Racks / cabinets wit standard mounting angles) and facilitates combination of three functions Optical Splicing, Management, and
Distribution/Termination.

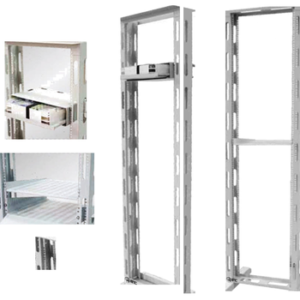

Open Racks (RS)

Innovative Design for Complex Cable management. Frame is designed to be rigid and light Weight .
Large Cut outs are provided in the Frame to enable easy cable management through them.
Mounting angles provided with 19″ universal Hole Pattern.
RS Rack is offered in 3 designs ; Fixed Frame , Single Frame & Double Frame .
Frame is manufactured from 1.5 mm Steel Sheets for main frame and
3.0 mm for Base.
Frame is electrostatic powder coated in different RAL Colors.

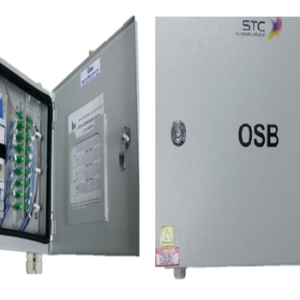

OSB-MB

OSB-MB Series optical Splitter Boxes enables customers to accelerate their FTTx deployments more effectively and is an ideal solution when deploying FTTx networks for non-residential and residential applications.
OSB-MB Series optical Splitter wall mounted boxes provide a small footprint for splitting, splicing and terminating and are environmentally rated for outdoor and indoor use.
Each enclosure is equipped with fiber splice trays allowing input splicing option. OSB-MB Series optical Splitter Boxes accept standard plug and play (PNP) splitters .Splitters can be easily added after the wall mounting of the boxes. OSB-MB Series optical Splitter
Boxes can accommodate Nx4, Nx8, N x 16, N x 32 Splitters ( N : Input 1 or 2 )

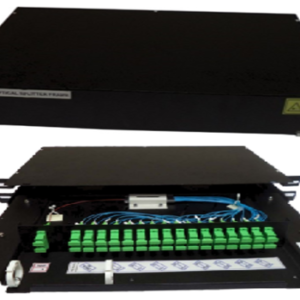

OSF Slide

OSF Slide Series Fiber Optic Enclosures offered are high quality 19 “/21” standard frame for termination / splitting of fibers in FTTH/FTTB/FTTP networks.
OSF Slide Series enclosures provide in building optical splitting and routing facility. It is ideal for small to big fiber splitting / termination inside building/offices / and central offices. OSF Slide Series enclosures are user friendly, with flexible installation from front and back side.

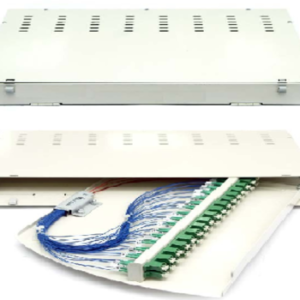

OSF Swing

OSF Swing Series Fiber Optic Enclosures offered are high quality 19 “/21” standard frame for termination / splitting of fibers in FTTH/FTTB/FTTP networks.
OSF Swing Series enclosures provide in building optical splitting and routing facility. It is ideal for small to big fiber splitting / termination inside building/offices / and central offices. OSF Swing Series enclosures are user friendly, with flexible installation from front and back side.

OTB-NMB 24F

OTB-NMB Series Fiber Optical enclosures are offered as Optical Termination Box (OTB), used in the end termination of residential buildings and villas, to fix and splice with pigtails.
OTB-NMB Series Boxes with capacities from 12 to 24 optical connectors are provided for indoor or outdoor use. These Boxes are wall mounted. All Models of these Boxes are manufactured and equipped with leading and storage elements for patch cords and optical cables, with splice tray, Inlet /OutIet Ports.

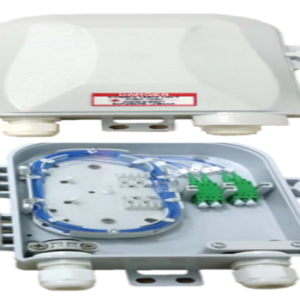

OTB-NMB 8F

OTB-NMB 8F Series Fiber Optical enclosures are offered as Optical Termination Box (OTB), used in the end termination of residential buildings and villas, to fix and splice with pigtails.
OTB-NMB Series Boxes with capacities from 1 to 8 optical connectors are provided for indoor or outdoor use. These Boxes are wall mounted. All of these Boxes are manufactured and equipped with leading and storage elements for patch cords and optical cables, with splice tray, Inlet /OutIet Ports.

Patch cable

As building to building connecting cables
As Indoor cable along the wall ceiling and between layers and in ducts .

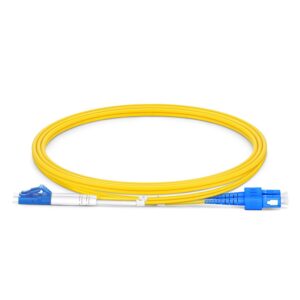

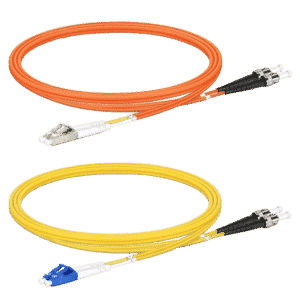

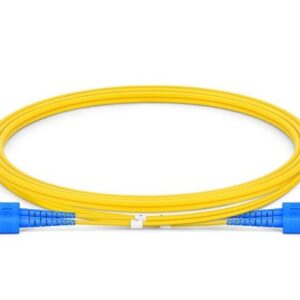

Patch cord

vSimplex or Duplex Cables for selection Different fiber connectors for selection Connector Types – FC / SC / LC / ST / D4/ MU
Outer Jacket – PVC / Riser / Plenum / OFNR /OFNP & LSZH available on Request ATC Standard is Plemum Grade for outer Jackets
Polishing offered in PC / UPC for FC / SC / ST / MU Polishing offered in APC for SC / FC / LC
Used for Ethernet , FDDI ,Fiber optic system , Video transmission , CATV and Cable TV etc.

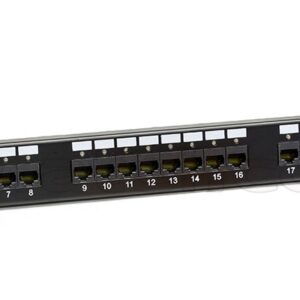

Patch Panel

Amwaj Copper Patch Panels are modular and provide an aesthetically pleasing solution for housing modular jacks. These lightweight panels are compatible with all typical industry accepted modular jacks. 1RU, 24-port patch panels and 2RU, 48-port patch panel is available in a flat version.
All models include integral cable management.

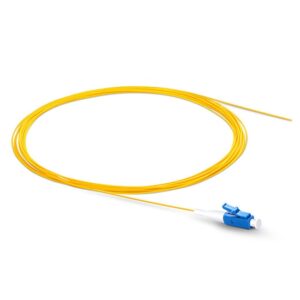

Pigtail

Different fiber connectors for selection Connector Types – FC / SC / LC / ST / D4 / MU
Outer Jacket – PVC / Riser / Plenum / OFNR /OFNP & LSZH available on request ATC Standard is Plenum Grade for outer Jackets
Superior Polishing offered in PC / UPC /APC
Used for Ethernet , FDDl,Fiber optic system , Video transmission , CATV and Cable TV etc

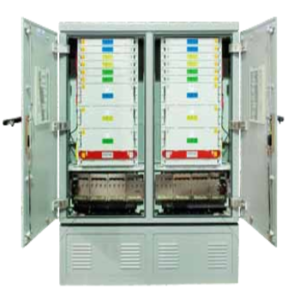

Promex-HD_UHD-RA

Promex-HD/UHD-RA Fiber Distribution Terminal Cabinets enables telecom operator & service providers to maintain and manage the distribution of the connection in a disciplined manner for small and large scale FTTX networks.

Rack Accessories

RG59 U Coaxial and Signal Cables

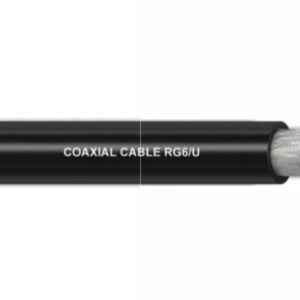

RG6 U Coaxial and Signal Cables

To meet the needs of today’s sophisticated, high-speed, wide bandwidth electronics over long distances, with minimum signal loss or degradation, suitable for varied mechanical, thermal and electronic properties of Coaxial cables mean that they can be used up into the GHz levels, suitable for direct Broadcast Satellite (DBS),AnaIog, Digital and Hybrid Cable TV Systems and FM Broadcast.

Splitters

Different fiber connectors for selection Connector Types – FC / SC / LC / ST / D4 / MU
Outer Jacket – PVC / Riser / Plenum / OFNR /OFNP & LSZH available on request ATC Standard is Plenum Grade for outer Jackets
Superior Polishing offered in PC / UPC /APC
Used for Ethernet , FDDL, Fiber optic system , Video transmission , CATV and Cable TV etc.

Steel tape armored aerial

Steel tape armored dual sheath

Steel tape armored single sheath

Steel tape double armored

Telephone Cable

Used for voice, indoor installation and interconnection of transmission, telephone, telegraph and electronic equipment. Also it is used in local telephone networks as well as in private communication system.
TechLine Indoor Telephone Cables are designed and tested according to meet or exceed the requirements of IEC 60198-1 and IEC 60189-2 standards. However, TechLine can also supply a range of alternative designs to meet customer-specification requirements.

Wall Mounted Cabinets (CABWM)

Produced in sizes 3U”21U Single Section / Double Section Width 600mm
Depth 500, 550, 600mm or 450+100 and 500+100mm Frame construction; 1.2 mm sheet steel
Color powder coated RAL (standard RAL 7035, 9005) Door with Single point lock; other locks on request
Wide variety of doors: Tempered security glass door (as standard front door); optionally solid steel, perforated steel, vertically double doors etc. Solid Rear panel with hanging holes
Reversible door – easy re-hanging to open on right or left (at installation site)
Door opening angle 180°
Removable side panels with plastic latch lock; easy access to installed devices, security, and fast installation and dismantling
Top/Bottom plates with knock out openings for cable entry Top frame perforated for effective ventilation
Ventilation unit can be installed in top frame Four sliding 19″ vertical Mounting angles
Possibility to adapt 800 mm wide racks for installation of 21″ equipment (on request)
Adaptor used for modification of 19″ accessories for 21″ mounting GND/Earthing kit
One standard 19” shelf
Load rating max. 200 kg balanced load; 300 kg optionally Standard protection rating lP30; optionally lP41, IP20 when perforated doors used

Call Us

Have a cool project in mind?

info@amwajfactory.com

CONTACT ME

I’m interested in working together

+966 11 4009204

Have a project in mind? Send a message.

info@amwajfactory.com

About our company

Company

Contact

I’m interested in
working together

Have a project in mind?
Send a message.
